stm32_eth.h File Reference

Include stm32_eth source files. More...

#include "stm32_def.h"
#include "lwip/ip_addr.h"
#include "lwip/dhcp.h"
#include "lwip/udp.h"
#include "lwip/tcp.h"
#include "lwip/opt.h"
#include <functional>

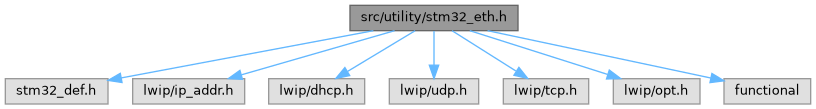

Include dependency graph for stm32_eth.h:

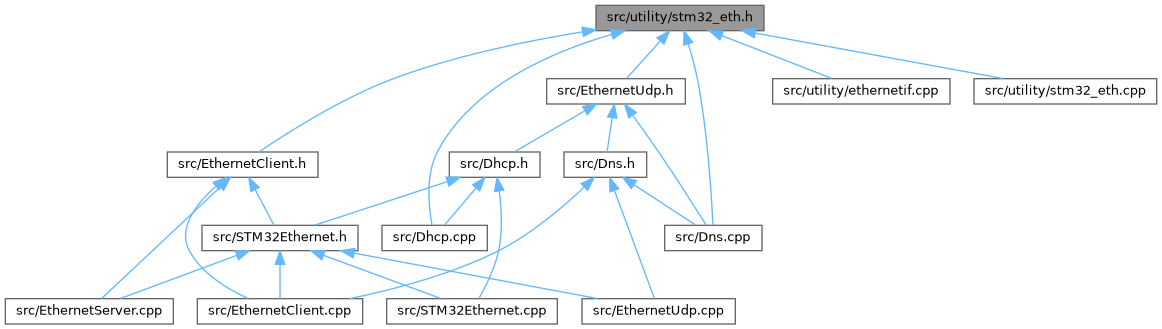

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	pbuf_data
struct	udp_struct
struct	tcp_struct

Macros
#define	IP_ADDR0   (uint8_t) 192
#define	IP_ADDR1   (uint8_t) 168
#define	IP_ADDR2   (uint8_t) 0
#define	IP_ADDR3   (uint8_t) 10
#define	NETMASK_ADDR0   (uint8_t) 255
#define	NETMASK_ADDR1   (uint8_t) 255
#define	NETMASK_ADDR2   (uint8_t) 255
#define	NETMASK_ADDR3   (uint8_t) 0
#define	GW_ADDR0   (uint8_t) 192
#define	GW_ADDR1   (uint8_t) 168
#define	GW_ADDR2   (uint8_t) 0
#define	GW_ADDR3   (uint8_t) 1
#define	DHCP_OFF   (uint8_t) 0
#define	DHCP_START   (uint8_t) 1
#define	DHCP_WAIT_ADDRESS   (uint8_t) 2
#define	DHCP_ADDRESS_ASSIGNED   (uint8_t) 3
#define	DHCP_TIMEOUT   (uint8_t) 4
#define	DHCP_LINK_DOWN   (uint8_t) 5
#define	DHCP_ASK_RELEASE   (uint8_t) 6
#define	MAX_CLIENT   32

Enumerations
enum	tcp_client_states {   TCP_NONE = 0 , TCP_CONNECTED , TCP_RECEIVED , TCP_SENT ,   TCP_ACCEPTED , TCP_CLOSING }

Functions
void	stm32_eth_init (const uint8_t *mac, const uint8_t *ip, const uint8_t *gw, const uint8_t *netmask)
	Initialize the Ethernet interface and the LwIP stack.
uint8_t	stm32_eth_is_init (void)
	Check whether the Ethernet interface has been initialized.
void	stm32_eth_get_macaddr (uint8_t *mac)
	Copy the MAC address of the Ethernet interface.
void	stm32_eth_set_macaddr (const uint8_t *mac)
	Set the MAC address of the Ethernet interface.
uint8_t	stm32_eth_link_up (void)
	Check whether the Ethernet link is up.
void	stm32_eth_scheduler (void)
	Run one LwIP scheduler pass.
void	User_notification (struct netif *netif)
	Notify the user about the network interface status.
uint32_t	stm32_eth_get_ipaddr (void)
	Return the IPv4 address of the network interface.
uint32_t	stm32_eth_get_gwaddr (void)
	Return the gateway address of the network interface.
uint32_t	stm32_eth_get_netmaskaddr (void)
	Return the netmask of the network interface.
uint32_t	stm32_eth_get_dnsaddr (void)
	Return the first DNS server address.
uint32_t	stm32_eth_get_dhcpaddr (void)
	Return the address of the DHCP server.
struct pbuf *	stm32_new_data (struct pbuf *p, const uint8_t *buffer, size_t size)
	Allocate a pbuf holding the given data.
struct pbuf *	stm32_free_data (struct pbuf *p)
	Free a pbuf chain.
uint16_t	stm32_get_data (struct pbuf_data *data, uint8_t *buffer, size_t size)
	Copy received data from a pbuf_data into a user buffer.
ip_addr_t *	u8_to_ip_addr (uint8_t *ipu8, ip_addr_t *ipaddr)
	Convert an IPv4 address from 4 bytes into an ip_addr_t.
uint32_t	ip_addr_to_u32 (ip_addr_t *ipaddr)
	Convert an ip_addr_t IPv4 address into a uint32_t.

Detailed Description

Include stm32_eth source files.

Author

WI6LABS

Version

V1.0.0

Date

24-May-2017

Attention

© COPYRIGHT(c) 2016 STMicroelectronics

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. Neither the name of STMicroelectronics nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Macro Definition Documentation

DHCP_ADDRESS_ASSIGNED

#define DHCP_ADDRESS_ASSIGNED   (uint8_t) 3

DHCP_ASK_RELEASE

#define DHCP_ASK_RELEASE   (uint8_t) 6

DHCP_LINK_DOWN

#define DHCP_LINK_DOWN   (uint8_t) 5

DHCP_OFF

#define DHCP_OFF   (uint8_t) 0

DHCP_START

#define DHCP_START   (uint8_t) 1

DHCP_TIMEOUT

#define DHCP_TIMEOUT   (uint8_t) 4

DHCP_WAIT_ADDRESS

#define DHCP_WAIT_ADDRESS   (uint8_t) 2

GW_ADDR0

#define GW_ADDR0   (uint8_t) 192

GW_ADDR1

#define GW_ADDR1   (uint8_t) 168

GW_ADDR2

#define GW_ADDR2   (uint8_t) 0

GW_ADDR3

#define GW_ADDR3   (uint8_t) 1

IP_ADDR0

#define IP_ADDR0   (uint8_t) 192

IP_ADDR1

#define IP_ADDR1   (uint8_t) 168

IP_ADDR2

#define IP_ADDR2   (uint8_t) 0

IP_ADDR3

#define IP_ADDR3   (uint8_t) 10

MAX_CLIENT

#define MAX_CLIENT   32

NETMASK_ADDR0

#define NETMASK_ADDR0   (uint8_t) 255

NETMASK_ADDR1

#define NETMASK_ADDR1   (uint8_t) 255

NETMASK_ADDR2

#define NETMASK_ADDR2   (uint8_t) 255

NETMASK_ADDR3

#define NETMASK_ADDR3   (uint8_t) 0

Enumeration Type Documentation

tcp_client_states

enum tcp_client_states

Enumerator
TCP_NONE
TCP_CONNECTED
TCP_RECEIVED
TCP_SENT
TCP_ACCEPTED
TCP_CLOSING

Function Documentation

ip_addr_to_u32()

uint32_t ip_addr_to_u32

(

ip_addr_t *

ipaddr

)

Convert an ip_addr_t IPv4 address into a uint32_t.

Parameters

ipaddr

Address to convert.

Returns

The address as a uint32_t (raw network byte order).

stm32_eth_get_dhcpaddr()

uint32_t stm32_eth_get_dhcpaddr

(

void

)

Return the address of the DHCP server.

Returns

DHCP server address as a uint32_t (raw network byte order).

stm32_eth_get_dnsaddr()

uint32_t stm32_eth_get_dnsaddr

(

void

)

Return the first DNS server address.

Returns

DNS server address (server 0) as a uint32_t (raw network byte order).

stm32_eth_get_gwaddr()

uint32_t stm32_eth_get_gwaddr

(

void

)

Return the gateway address of the network interface.

Returns

Gateway address as a uint32_t (raw network byte order).

stm32_eth_get_ipaddr()

uint32_t stm32_eth_get_ipaddr

(

void

)

Return the IPv4 address of the network interface.

Returns

Address as a uint32_t (raw network byte order).

stm32_eth_get_macaddr()

void stm32_eth_get_macaddr

(

uint8_t *

mac

)

Copy the MAC address of the Ethernet interface.

Parameters

mac	Receives the MAC address (6 bytes). Nothing is copied if NULL.

stm32_eth_get_netmaskaddr()

uint32_t stm32_eth_get_netmaskaddr

(

void

)

Return the netmask of the network interface.

Returns

Netmask as a uint32_t (raw network byte order).

stm32_eth_init()

void stm32_eth_init	(	const uint8_t *	mac,
		const uint8_t *	ip,
		const uint8_t *	gw,
		const uint8_t *	netmask
	)

Initialize the Ethernet interface and the LwIP stack.

LwIP initialization and the scheduler timer setup run only on the first call. Every call reconfigures the network interface and runs one scheduler pass.

A NULL argument selects the default value:

• mac: the MAC address is left unchanged.
• ip, gw, netmask: set to zero when LWIP_DHCP is enabled, otherwise to the compile-time defaults (IP_ADDR*, GW_ADDR*, NETMASK_ADDR*).

Parameters

mac	MAC address (6 bytes), or NULL to keep the default MAC address.
ip	IPv4 address (4 bytes), or NULL for the default.
gw	Gateway address (4 bytes), or NULL for the default.
netmask	Netmask (4 bytes), or NULL for the default.

stm32_eth_is_init()

uint8_t stm32_eth_is_init

(

void

)

Check whether the Ethernet interface has been initialized.

Returns

1 if the Ethernet hardware is initialized, 0 otherwise.

stm32_eth_link_up()

uint8_t stm32_eth_link_up

(

void

)

Check whether the Ethernet link is up.

Returns

Non-zero if the link is up, 0 otherwise.

stm32_eth_scheduler()

void stm32_eth_scheduler

(

void

)

Run one LwIP scheduler pass.

Reads received packets (unless ETH_INPUT_USE_IT is defined), checks the link status, handles LwIP timeouts and runs the periodic DHCP processing.

stm32_eth_set_macaddr()

void stm32_eth_set_macaddr

(

const uint8_t *

mac

)

Set the MAC address of the Ethernet interface.

The address is stored only before the interface is initialized.

Parameters

mac	MAC address (6 bytes). Ignored if NULL.

stm32_free_data()

struct pbuf * stm32_free_data

(

struct pbuf *

p

)

Free a pbuf chain.

Parameters

p	Pbuf to free; NULL is ignored.

Returns

Always NULL.

stm32_get_data()

uint16_t stm32_get_data	(	struct pbuf_data *	data,
		uint8_t *	buffer,
		size_t	size
	)

Copy received data from a pbuf_data into a user buffer.

Frees the pbufs that are fully consumed.

Parameters

data	Source of the received data.
buffer	Destination buffer.
size	Maximum number of bytes to copy.

Returns

Number of bytes copied, or 0 on invalid arguments or when no data is available.

stm32_new_data()

struct pbuf * stm32_new_data	(	struct pbuf *	p,
		const uint8_t *	buffer,
		size_t	size
	)

Allocate a pbuf holding the given data.

If p is NULL, allocates a new pbuf and copies buffer into it. Otherwise, allocates a larger pbuf, copies the contents of p and appends buffer, then frees p. On failure, returns NULL and leaves p unchanged.

Parameters

p	Existing pbuf to extend, or NULL to create a new one.
buffer	Data to store.
size	Number of bytes to store from buffer.

Returns

Pointer to the pbuf holding the data, or NULL on failure.

u8_to_ip_addr()

ip_addr_t * u8_to_ip_addr	(	uint8_t *	ipu8,
		ip_addr_t *	ipaddr
	)

Convert an IPv4 address from 4 bytes into an ip_addr_t.

Parameters

ipu8	Address bytes (4 bytes).
ipaddr	Receives the converted address.

Returns

Pointer to ipaddr.

User_notification()

void User_notification

(

struct netif *

netif

)

Notify the user about the network interface status.

If the interface is down and DHCP was started by the user, sets the DHCP state to DHCP_LINK_DOWN.

Parameters

netif

Network interface to check.
