API

Note

Since core release 3.0.0, the STM32 Arduino core is based on the official ArduinoCore-API. It provides the standard Arduino API contracts, types, and interfaces used by the core, while STM32-specific extensions remain available. See the STM32 ArduinoCore-API integration for implementation details.

This page documents STM32-specific additions and extensions. For the standard Arduino API, see the Arduino language reference and the ArduinoCore-API documentation.

Core

This part describes the STM32 core functions.

Core version

The core version API was introduced in version 1.5.0 and follows Semantic Versioning 2.0.0.

The version is defined in stm32_def.h.

STM32_CORE_VERSION defines the core version with:

STM32_CORE_VERSION_MAJOR: major version [31:24]
STM32_CORE_VERSION_MINOR: minor version [23:16]
STM32_CORE_VERSION_PATCH: patch version [15:8]
STM32_CORE_VERSION_EXTRA: Extra label [7:0], with:
- 0: official release
- [1-9]: release candidate
- F[0-9]: development

Example

#if !defined(STM32_CORE_VERSION) || (STM32_CORE_VERSION  <= 0x01050000)
/* Do something for core version lesser than or equal to 1.5.0 */
#else
/* Do something for core version greater than 1.5.0 */
#endif

Core Callback

CoreCallback functions allows to register a callback function called in the loop of the main() function. If you need to call as often as possible a function to update your system and you want to be sure this function to be called, you can add it to the callback list. Otherwise, your function should be called inside the loop() function of the sketch.

void registerCoreCallback(void (*func)(void)): register a callback function Params func pointer to the callback function
void unregisterCoreCallback(void (*func)(void)): unregister a callback function Params func pointer to the callback function

Warning

By default, the core callback feature is disabled, to enable it CORE_CALLBACK must be defined.

build_opt.h can be used to define it by adding -DCORE_CALLBACK.

STM32 extensions

Analog

analogWrite: DAC, PWM or GPIO

analogWrite() function follows the API reference. As each pin has not the same capabilities, it uses the best way:

True analog output when using pins with DAC capabilities if HAL_DAC_MODULE_ENABLED is defined
PWM on pins with timer (TIM) capabilities.
GPIO toggling HIGH/LOW depending on requested value: HIGH if > 127 else LOW

Frequency

analogWriteFrequency(freq) has been added in core version greater than 1.5.0 to set the frequency used by analogWrite(). Default is PWM_FREQUENCY (1000) in Hertz.

Note

frequency is common to all channels of a specified timer, setting the frequency for one channel will impact all others of the same timer.

Example

  // Assuming Ax pins have PWM capabilities and use a different Timer.
  analogWrite(A1, 127); // Start PWM on A1, at 1000 Hz with 50% duty cycle
  analogWriteFrequency(2000); // Set PWM period to 2000 Hz instead of 1000
  analogWrite(A2, 64); // Start PWM on A2, at 2000 Hz with 25% duty cycle
  analogWriteFrequency(500); // Set PWM period to 500 Hz
  analogWrite(A3, 192); // Start PWM on A3, at 500 Hz with 75% duty cycle

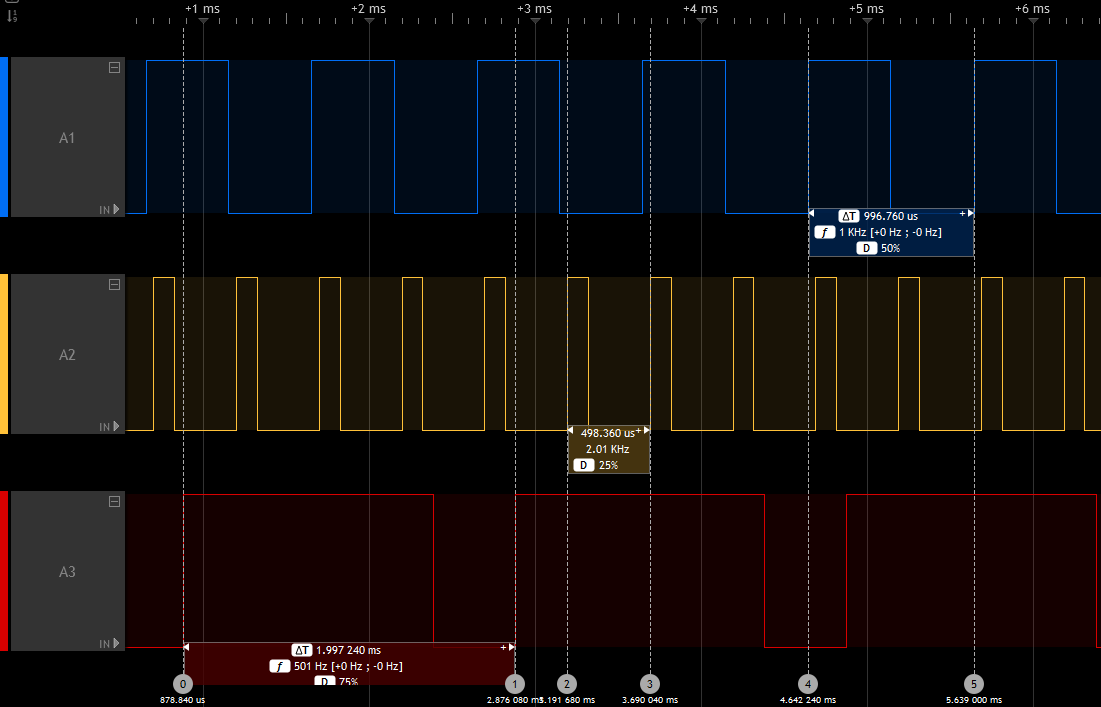

PWM Freq result

DAC output buffer

Note

Available since version 2.8.0, thanks to PR #2309.

It is now possible to disable the DAC output buffer (which is enabled by default) by defining DISABLE_DAC_OUTPUTBUFFER using one of the below options:

hal_conf_extra.h
build_opt.h
header file of the variant: variant_<boardname>.h

ADC general

setup: pinMode(pin, INPUT_ANALOG); has to be an ADC pin (e.g. PA0)
read: uint16_t adc_value = analogRead(pin);

ADC internal channels

Available in core version greater than 1.5.0

analogRead() can now be used to read some internal channels with the following definitions:

ATEMP: internal temperature sensor
AVREF: VrefInt, internal voltage reference
AVBAT: Vbat voltage

ADC read resolution (bits)

By default, analogRead(pin) returns 10-bit values to match the classic Arduino behavior and library expectations.

Use analogReadResolution(int bits) to select another resolution, for example analogReadResolution(12) for a 12-bit ADC.

ADC sampling time

A minimum ADC sampling time is required when reading internal channels, so the default is set to the maximum available value. It can be defined more precisely with:

ADC_SAMPLINGTIME_INTERNAL: set this to the desired ADC sample time.

ADC_SAMPLINGTIME and ADC_CLOCK_DIV could also be redefined by the variant or using build_opt.h.

Example

An example that reads and converts the three internal channels and A0 is provided by the STM32Examples library: Internal_channels

Warning

This example is provided as-is and may require updates for device-specific datasheet values.

HardwareSerial

STM32 MCUs have several U(S)ART peripherals. For convenience, the U(S)ARTx number is used to define the Serialx instance:

Serial1 for USART1
Serial2 for USART2
Serial3 for USART3
Serial4 for UART4
...

For LPUART peripherals:

SerialLP1 for LPUART1
SerialLP2 for LPUART2
SerialLP3 for LPUART3

By default, only one Serialx instance is available mapped to the generic Serial name.

To use a second serial port, a HardwareSerial object should be declared in the sketch before the setup() function:

//                      RX    TX
HardwareSerial Serial1(PA10, PA9);

void setup() {
  Serial1.begin(115200);
}

void loop() {
  Serial1.println("Hello World!");
  delay(1000);
}

Another solution is to add a build_opt.h file alongside your main .ino file with: -DENABLE_HWSERIALx.

This will define the Serialx instance using the first USARTx instance found in the PeripheralPins.c of your variant.

Note

that only the latter solution allows to use the serialEventx() callback in the sketch.

For Example, if you define in the build_opt.h: -DENABLE_HWSERIAL3

This will instantiate Serial3 with the first Rx and Tx pins found in the PinMap_UART_RX[] and PinMap_UART_TX[] arrays in the PeripheralPins.c of your variant and the serialEvent3() will be enabled.

To specify which Rx or Tx pins should be used instead of the first one found, define PIN_SERIALn_RX or PIN_SERIALn_TX, where n is the number of the Serial instance.

Example for the Serial3:

In the variant.h:

#define PIN_SERIAL3_RX PB11
#define PIN_SERIAL3_TX PB10

In the build_opt.h, use:

-DPIN_SERIAL3_RX=PB11 -DPIN_SERIAL3_TX=PB10

New API functions

Change default `Serial` instance pins

It is also possible to change the default pins used by the Serial instance using above API:

void setRx(uint32_t rx)
void setTx(uint32_t tx)
void setRx(PinName rx)
void setTx(PinName tx)

Warning

Have to be called before begin().

Example:

    Serial.setRx(PG_9); // using pin name PY_n
    Serial.setTx(PG14); // using pin number PYn
    Serial.begin(9600);

Enable half-duplex mode

Available in core version greater than 1.7.0

It is now possible to set a HardwareSerial in half-duplex mode.

The U(S)ART can be configured to follow a single-wire half-duplex protocol where the Tx and Rx lines are internally connected. In this communication mode, only the Tx pin is used for both transmission and reception.

Extended HardwareSerial constructors:
HardwareSerial(uint32_t _rxtx): U(S)ART Tx pin number (PYn) used for half-duplex
HardwareSerial(PinName _rxtx): U(S)ART Tx pin name (PY_n) used for half-duplex
if Rx == Tx then assume half-duplex mode:
- HardwareSerial(uint32_t _rx, uint32_t _tx): U(S)ART Tx pin number (PYn) used for half-duplex
- HardwareSerial(PinName _rx, PinName tx): U(S)ART Tx pin name (PY_n) used for half-duplex
HardwareSerial(void *peripheral, HalfDuplexMode_t halfDuplex = HALF_DUPLEX_DISABLED): if HALF_DUPLEX_ENABLED get the first Tx pin for requested peripheral in thePeripheralPins.c used for half-duplex
Add enableHalfDuplexRx() to enable Serial in Rx mode. Doing a read() could be used but will avoid to perform a read. Useful before available() usage
void setHalfDuplex(): enable half-duplex mode of an instance when it not instantiate in half-duplex mode. Must be call before begin() in this case.

Example for a Nucleo L496ZG-P:

Serial4 sends byte to Serial3, compare values then Serial3 resend it to Serial4 and compare. Require to connect PA0 andPB10.

All possible constructor are listed.

HardwareSerial Serial3(PA0);
HardwareSerial Serial4(PB10);

//HardwareSerial Serial3(PA_0);
//HardwareSerial Serial4(PB_10);

//HardwareSerial Serial3(UART4, HALF_DUPLEX_ENABLED);
//HardwareSerial Serial4(USART3, HALF_DUPLEX_ENABLED);

//HardwareSerial Serial3(PA0, PA0);
//HardwareSerial Serial4(PB10, PB10);

//HardwareSerial Serial3(PA_0, PA_0);
//HardwareSerial Serial4(PB_10, PB_10);

//HardwareSerial Serial3(NC, PA_0);
//HardwareSerial Serial4(NC, PB_10);

//HardwareSerial Serial3(NUM_DIGITAL_PINS, PA0);
//HardwareSerial Serial4(NUM_DIGITAL_PINS, PB10);

static uint32_t nbTestOK = 0;
static uint32_t nbTestKO = 0;
void test_uart(int val)
{
  int recval = -1;
  uint32_t error = 0;

  Serial4.write(val);
  delay(10);
  while (Serial3.available()) {
    recval = Serial3.read();
  }
  /* Enable Serial4 to RX*/
  Serial4.enableHalfDuplexRx();
  if (val == recval) {
    Serial3.write(val);
    delay(10);

    while (Serial4.available()) {
      recval = Serial4.read();
    }
    /* Enable Serial3 to RX*/
    Serial3.enableHalfDuplexRx();
    if (val == recval) {
      nbTestOK++;
      Serial.print("Exchange: 0x");
      Serial.println(recval, HEX);
    } else {
      error = 2;
    }
  }
  else {
    error = 1;
  }
  if (error) {
    Serial.print("Send: 0x");
    Serial.print(val, HEX);
    Serial.print("\tReceived: 0x");
    Serial.print(recval, HEX);
    Serial.print(" --> KO <--");
    Serial.println(error);
    nbTestKO++;
  }
}

void setup() {
  Serial.begin(115200);
  Serial4.begin(9600);
  Serial3.begin(9600);
}

void loop() {

  for (uint32_t i = 0; i <= (0xFF); i++) {
    test_uart(i);
  }

  Serial.println("Serial Half-Duplex test done.\nResults:");
  Serial.print("OK: ");
  Serial.println(nbTestOK);
  Serial.print("KO: ");
  Serial.println(nbTestKO);
  while (1);
}

Note

Serial Rx/TX buffer size can be changed, see Custom-definitions#serial-rxtx-buffer-size

Enable hardware flow control

Available in core version 2.3.0 or later

HardwareSerial constructors accept optional RTS/CTS pins:
HardwareSerial(uint32_t _rx, uint32_t _tx, uint32_t _rts = NUM_DIGITAL_PINS, uint32_t _cts = NUM_DIGITAL_PINS)
HardwareSerial(PinName _rx, PinName _tx, PinName _rts = NC, PinName _cts = NC)
You can also enable RTS/CTS pins on HardwareSerial instances:
void setRts(uint32_t _rts)
void setCts(uint32_t _cts)
void setRtsCts(uint32_t _rts, uint32_t _cts)
void setRts(PinName _rts)
void setCts(PinName _cts)
void setRtsCts(PinName _rts, PinName _cts)

Example:

// Enable hardware flow control on construction.
HardwareSerial serial(PA10, PA9, PA12, PA11);

// Or, enable later (but before calling begin()).
HardwareSerial serial(PA10, PA9);
serial.setRtsCts(PA12, PA11);
serial.begin(460800);

Enable Tx, Rx Pin Active Level and/or Data Inversion

Available in core version greater than 2.10.1

The U(S)ART Tx and Rx pin signal values can be inverted (VDD = 0/mark, Gnd = 1/idle), and the U(S)ART can send and receive data in negative/inverse logic (1 = L, 0 = H); the parity bit is also inverted.

Enable Tx and Rx active level inversion on HardwareSerial instances, respectively:
void setTxInvert(void)
void setRxInvert(void)
Enable data inversion on HardwareSerial instances:
void setDataInvert(void)

HardwareTimer library

See the HardwareTimer library reference for the timer API and STM32-specific timer features.

Other

Remembering variables across resets

Since core version 1.9.0 (see PR #996), it is possible to mark variables as "noinit", which prevents them from being initialized to a fixed value at startup. This allows using these variables to remember a value across resets (since the reset itself leaves memory unchanged, it is only the startup code that normally resets all variable values, but that is prevented by noinit).

To do this, the variable must be placed in the .noinit section by adding __attribute__((__section__(".noinit"))) (this is exactly the same as how this works on the original Arduino AVR core). Typically, you would also need to check the startup reason register so you can initialize the variable with a default on the first startup. For example, something like:

unsigned boot_count __attribute__((__section__(".noinit")));

void setup() {
    Serial.begin(115200);
    while (!Serial); // Wait for serial port open

    // Initialize the variable only on first power-on reset
    if (__HAL_RCC_GET_FLAG(RCC_FLAG_BORRST))
        boot_count = 1;
    __HAL_RCC_CLEAR_RESET_FLAGS();

    Serial.print("Boot number: ");
    Serial.println(boot_count);
    ++boot_count;
}

void loop() { }

This shows the number of boots since the last POR by incrementing a noinit variable across resets. Note that when you first upload this, it might not start at 1 but at some arbitrary value, because typically the first boot after an upload is not a power-on-reset. To start at 1, disconnect and reconnect power.
